Hydraulic Q355B Steel Excavator Grapple Wooden Log Grab 18-24 Ton Excavator SK220 PC210 for Log Grabbing Loading Transporting

Production Description

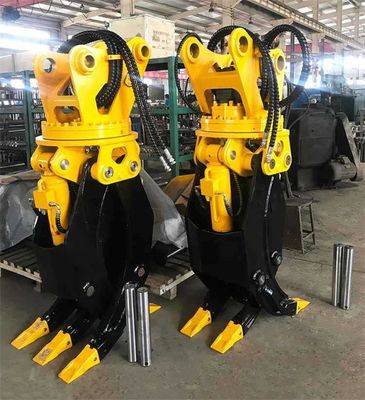

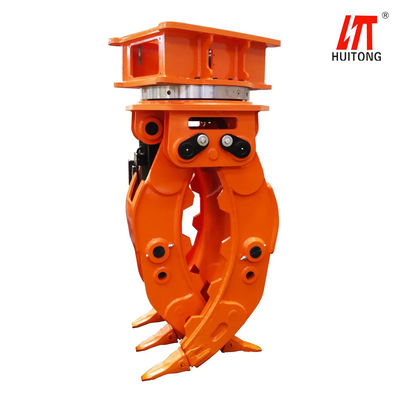

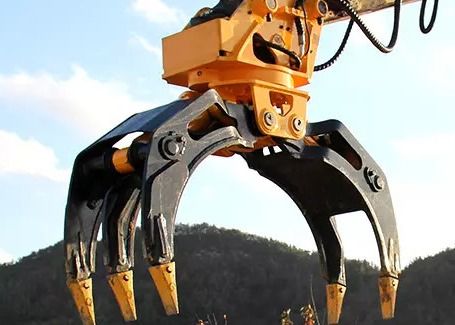

HT Excavator Rotating Grapple, also called "Excavator Log Grab, Timber Grab", adopts Q690 High Strength Steel and advance rotating motor. 360-degree clockwise or anticlockwise rotation and the rotation speed can be controlled by operator, special rotary gears are used to prolong lifespan and lower the cost, fit for all operations where there need grappling and loading, such as stone, timber, waste, tube operations, garden and stone laying projects

Advantages

1. Material:

1) Entire jaw structure is manufactured of quenched and tempered Q690 High Strength alloy steel, 130,000-psi min. yield 360-440
BHN. Instead of traditional Q355b.
2) The tine tips are 175,000-psi min. yield 450-550 BHN. Chromium plating.

2. Motor:
1) Motor drive adopts the design of symmetrical double support,strong shcok resistance, avoiding axle breakage and oil leakage.
2) Pedestal adopts sealed type design, better protect the rotary drive.
3) Output Torque:4 kN.m-8.5kN.m(6272lbf.ft)
Holding Torque 38kN.m-105kN.m(78000lbf.ft)
Moment Torque 26kN.m-203kN.m(150,000lbf.ft)

3. Strengths:
1) Sealed type rotary drive solve the oil leakage problem, only required light greasing(80g of grease) once 6 months(unlike most
of the product on the market needed greasing everyday) and better protect the product.
2) Motor drive adopted symetrical double support design, reducing the bearing load and extend service life.
3) The jaw structure is manufactured of Q690 High Strength Alloy Steel, lighter weight with twice of the strength comparing with
Q345(normally used on the market)

Specification

Grapple
Machine Tonnage	Description	Max.Opening ranging(in)	Weight(lbs)	Material
6-10T	Rotating/non-rotating	57.1	1430/1562	Q690+NM360
11-16T	Rotating/non-rotating	66.9	1760/1914	Q690+NM360
17-20T	Rotating/non-rotating	74.8	2134/2310	Q690+NM360
21-24T	Rotating/non-rotating	80.7	2354/2530	Q690+NM360
25-30T	Rotating/non-rotating	86.6	2640/2860	Q690+NM360
31-35T	Rotating/non-rotating	90.6	3080/3344	Q690+NM360
36-40T	Rotating/non-rotating	94.5	3630/3938	Q690+NM360
41-45T	Rotating/non-rotating	98.4	4268/4620	Q690+NM360
65T	Rotating/non-rotating	98.4	8140/9240	Q690+NM360





Material

Steels are being called differently among different countries. Here is the data that might gave you a better understanding of the steel we used for manufacturing HT Rotating Grapple.
